What qualities must a [home/domestic] sewing machine possess in order to be classified as heavy duty?
In this edition of The Sewing Machine Newsletter, I will flesh out a handful of characteristics that contribute to the heavy-duty-ness of a sewing machine. Some machines possess all of these characteristics. Some possess most of them. Some possess a few of them. Some possess none at all.
May this article serve as a guide for anyone in the market for a bona fide heavy duty home sewing machine.
I hope you find it helpful,
—Cale
(1) Metal Housing/Chassis

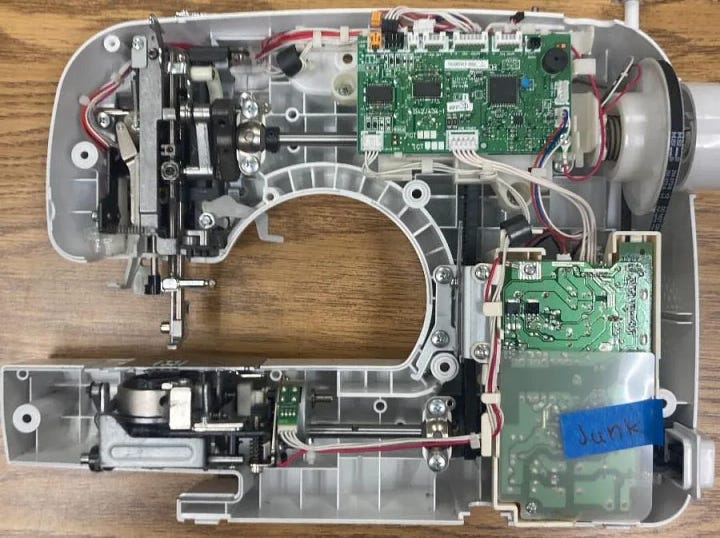

There is an entire category of sewing machines manufactured like a children’s toy, where all the critical components of the machine are housed onto the machine plastic cover.

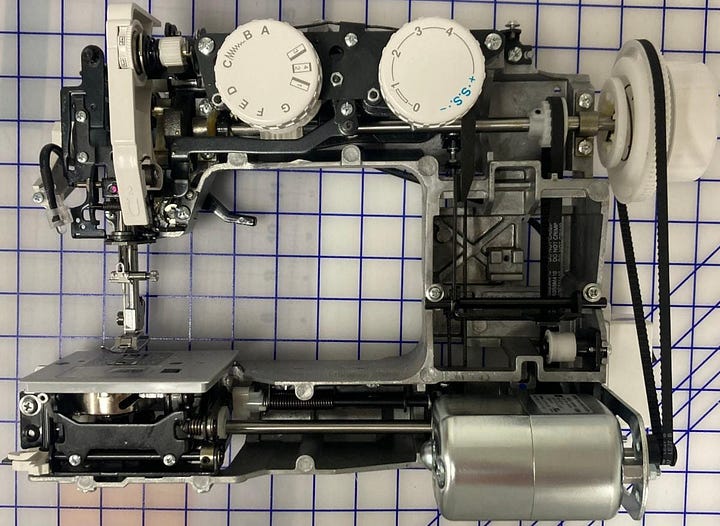

Juxtapose this with a machine built like a tool, where all the internal components are housed in a sturdy metal chassis.
I despise machines manufactured with plastic housing. They break easily and are a pain to repair, often costing the owner more to fix than the cost of a new machine altogether.
A machine cannot be considered heavy duty if it is built with plastic housing. It simply will not handle the stress of sewing through heavy fabrics for a reasonable amount of time. All heavy duty domestic sewing machines are manufactured with metal housing.
(2) Quality Internal Components
If someone comes into The Sewing Machine Shop and requests a heavy duty sewing machine capable of zig-zag and other decorative stitch patterns, I point the toward the Janome Skyline S3 and Skyline S6. Why? Because these two machines possess quality, heavy duty internal components that lesser machine do not possess.
For example, the needle of these Skyline models is physically thicker compared to other similarly priced machines, and therefore less susceptible to needle deflection when sewing through heavy fabrics. The upper and lower shafts on the Skyline series are also thicker, plus they are designed with ball bearing seals for smoother operation and less wear + tear over time.
On a related note, the value I place on internal components is why I am now hesitant to recommend vintage models for people in the market for a heavy duty machine. I used to recommend machines like the Bernina 1230 or the Pfaff 1471 (platforms I love), but these machines are quite old and we can’t source original replacement parts. For a machine that is going to be used for heavy duty sewing, a machine whose internal components are aftermarket or on their last legs probably isn’t the best option.
(3) Powerful Motor
I have already written a related article on how to calculate the power of a sewing machine, which I will link to you below:
In this article, the machines I judge to be the most powerful based on the eye-test also happen to have the most powerful motors:
Something I must note here is that the Janome Continental M6, M8, & M17 are designed with a brushless servo motor that is superior to the traditional brushed motors found on all other domestic sewing machines.
Compared to brushed motors, brushless motors typically tend to be more energy-efficient and capable of higher speeds and power. It is extremely rare for a home sewing machine to have a brushless motor, and much more common to see them paired with industrial machines. Since there are no brushes or commutators in a brushless motor, there is less friction and wear, resulting in higher efficiency, smoother operation, and longer lifespan compared to brushed motors.
(4) Take-up Stroke
Heavy fabric typically requires heavy thread, and this a major challenge for home sewing machines. Once thread reaches a certain thickness, home sewing machines often have trouble taking the thread knot from below the needle plate and cinching it all the way up into the fabric. Instead, the knot will sit on the underside of the fabric, which is considered poor stitch quality.
A key reason why this happens is because the sewing machine we’re using has an insufficient take-up stroke—— the distance the take-up lever travels from its bottommost position to its topmost position is not long enough to fully cinch that thick knot all the way up into the fabric.
Larger machines tend to have a longer take-up stroke than smaller machines. Industrial machines are specifically designed with a longer take-up stroke than domestic machines. This increased distance—— measured from the take-up lever’s lowest position to its highest—— allows the machine to pull larger thread knots fully into thick fabrics, setting the stitch securely in place.
It’s not surprise that the Juki TL 2010 and Bernina 740—— machines I consider to be heavy duty based on the eye-test—— happen to have longer take-up strokes than other machines.
(5) Vertical Hook System
Many industrial sewing machines are designed with a vertical rotary hook system, which I’ve defined in detail in the article linked below:
One major reason why they are designed with a vertical rotary hook is because this type of hook system handles heavier thread better than other hook systems.
What do I mean when I say it “handles heavier thread better”?
The stitch making process is complex. The machine is tying a knot between the needle thread and bobbin thread, and the crux of the process occurs at the site of the hook. If thread gets caught up or snagged, we’re in trouble. Heavier thread is more likely to get caught up than finer thread, and heavier thread is less likely to get caught up on a vertical rotary hook system (or a B9 hook system) than a horizontal rotary hook system. In the future I may go into further detail of why this is the case, but suffice it to say that the horizontal rotary hook design where needle plate hovers directly above the bobbin case is related to thread snagging when using heavy thread.
(6) Flatbed Design
There is class of domestic sewing machine designed with a flatbed frame, opposed to the more common free-arm frame. Because industrial sewing machines have a flatbed design of sorts, these domestic flatbed machines are infused with industrial DNA.
A flatbed design anchors the machine. The large, solid metal frame adds stability and strength, and because there’s no free arm, the engineers can reinforce every critical component, creating a platform that feels industrial-esque.

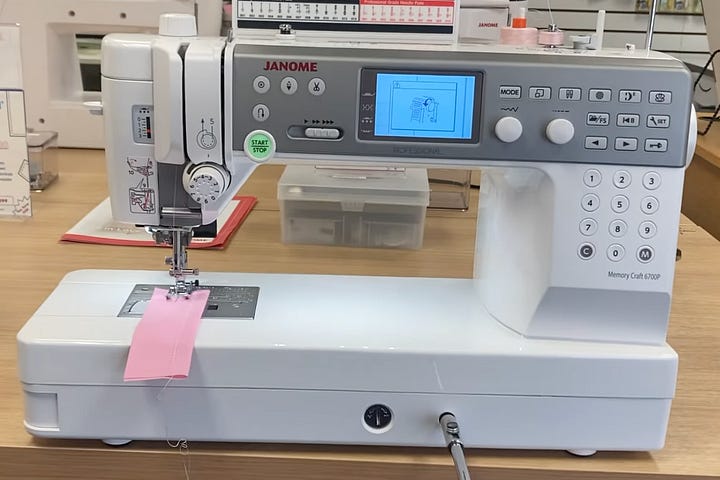

When you sew on one, you feel it immediately: the steadiness, the weight, the lack of vibration. The sewing experience is as close to an industrial machine as you can get at home. If you came to me and said you want a heavy duty sewing machine, I would make sure you check out flatbed machines like the Juki TL-2010, Janome MC6700, and the Janome Continental M6.
(7) Powder-Coated Frame
It should be said that the benefits of a powder coated sewing machine pale in comparison to what the powder coated sewing machine reveals about the company that does it. Still, many of the best heavy-duty domestic machines have a powder-coated metal frame, and I think it’s a detail worth taking into account.
Powder coating is a process used instead of painting. Dry polymer powder that is positively electrically charged (approx 50,000 Volts) is sprayed onto the sewing machine housing that is grounded via wire. The charged powder adheres to the housing very evenly and smooth. The casting is then baked in an oven creating a very hard, thick smooth glossy finish. The advantage to paint is that powder coating can be applied thick without creating drip marks and imperfections. It is harder than paint, very resistant to chipping, fading, and scratching.
NOTE: all flatbed machines from Janome & Juki are also powder-coated.
Cost effective heavy duty sewing machines:
Thank you for reading!
If you find my work valuable, please upgrade to become a paid subscriber. All revenue supports my family and goes a long way in helping me to continue to write.
You will unlock the full archive of over 140 similar sewing machine educational essays and articles.
All support is hugely appreciated.
—Cale
