Fabric Puckering & How To Avoid It
Needle type, straight-stitch needle plate, and stabilizer

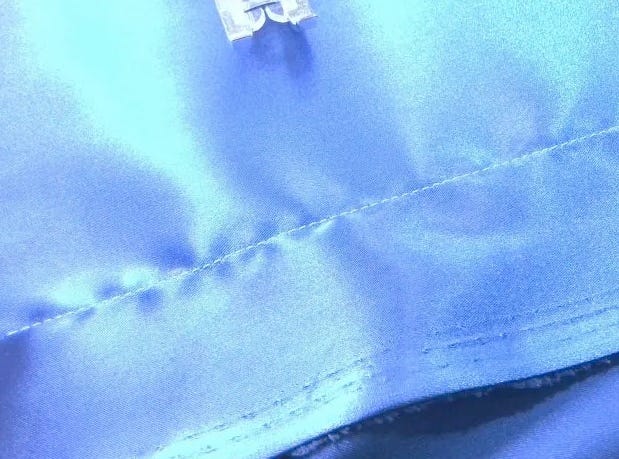

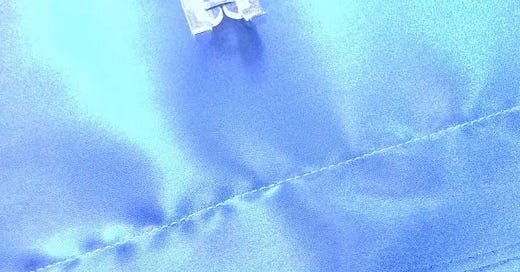

A common frustration among sewists is fabric puckering. It visibly distorts the fabric we are sewing, which is a problem for quilters, crafters, and garment-makers alike. In today’s edition of The Sewing Machine Newsletter, I will offer a handful of solutions to the problem of puckering.
I hope you find it helpful.
-Cale
What Causes Fabric Puckering?
In order for a sewing machine to make a stitch, the needle travels downward and pierces the fabric, then continues downward through the needle plate hole and down below the needle plate. Down here, the needle and hook do a little dance that results in the formation of a knot between the needle thread and bobbin thread. Then the needle rises up out of the fabric, the knot gets cinched tight, the fabric is fed forward, and the process repeats.

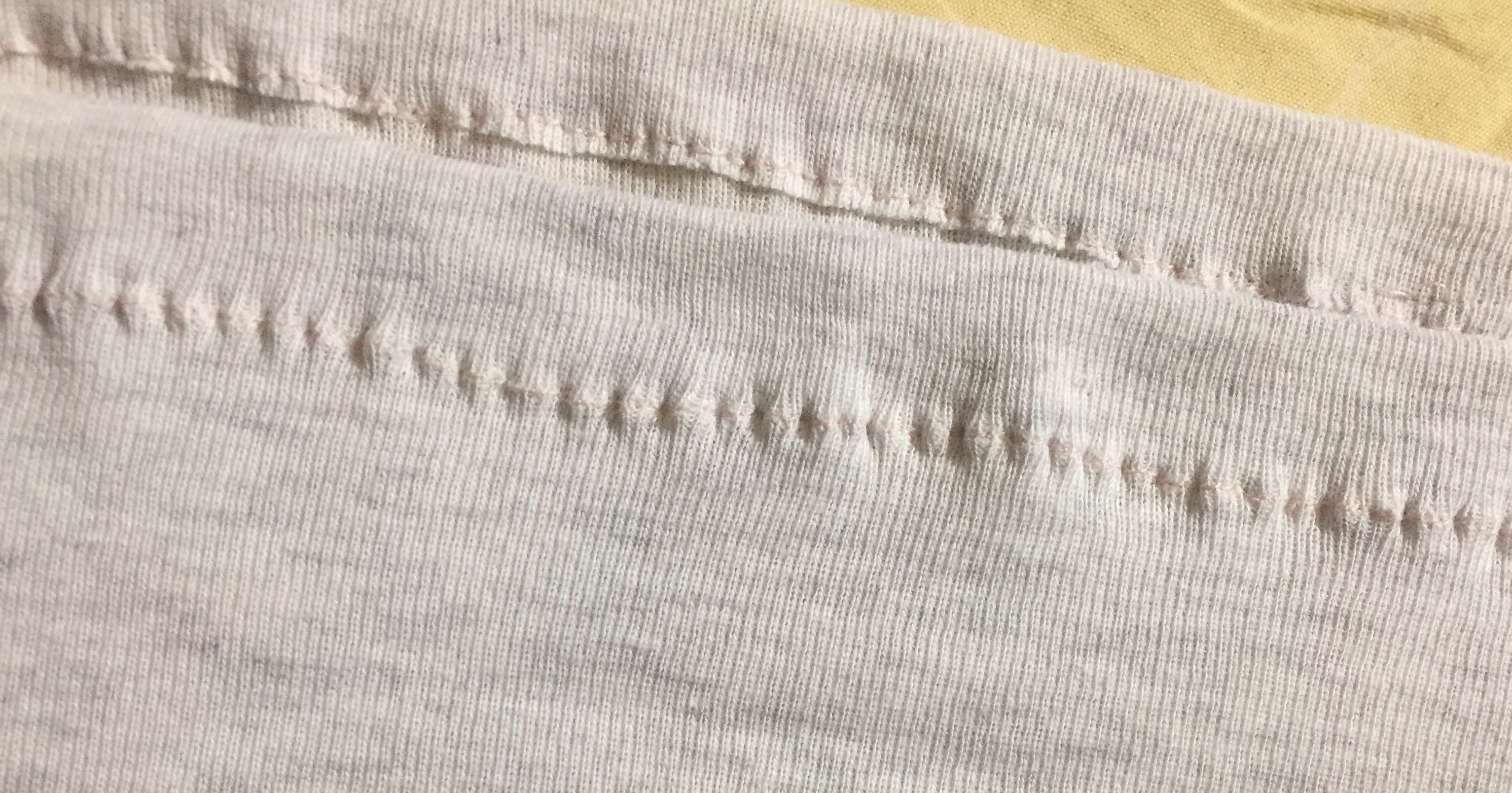

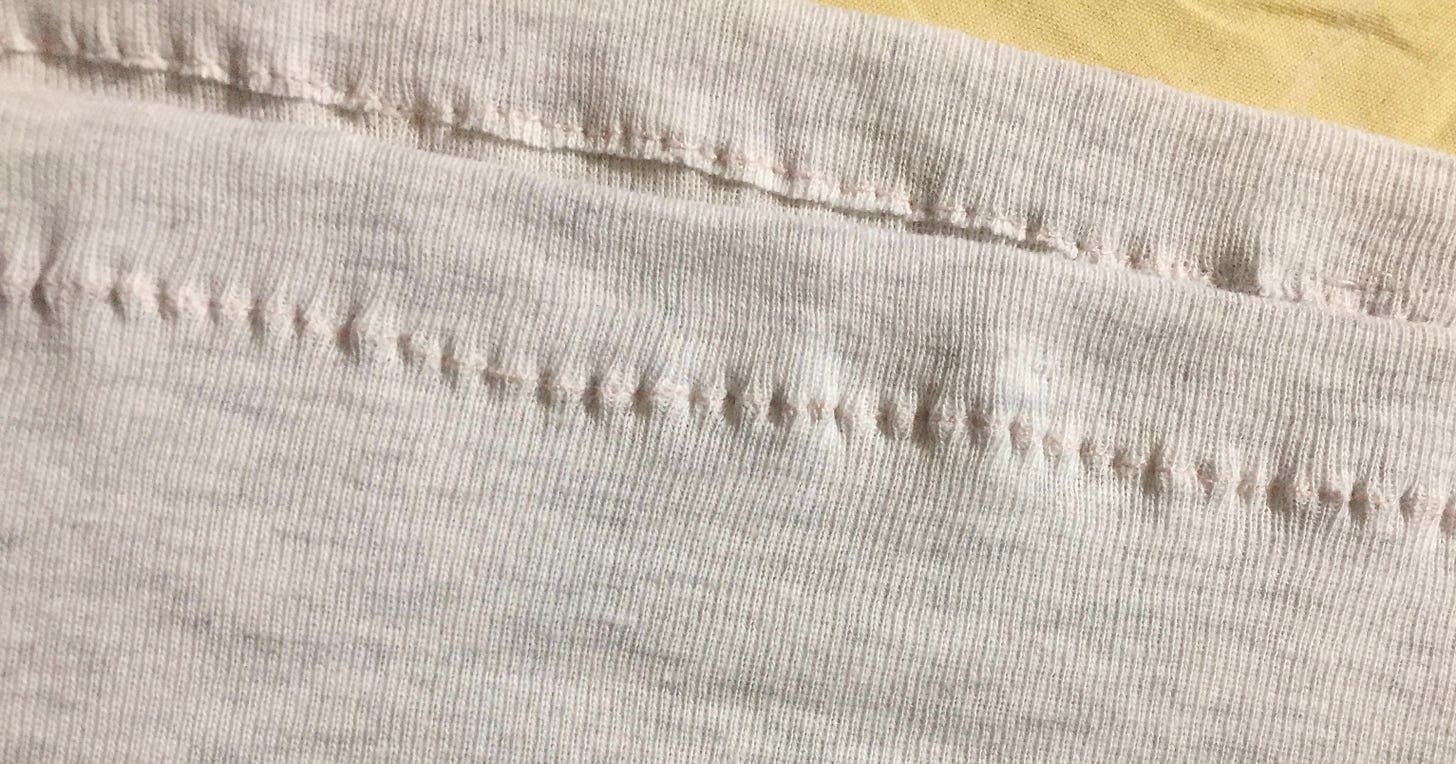

Puckering occurs near the beginning of this process, when the needle pierces the fabric and travels downward through the needle plate hole. If the fabric gets pushed down into the needle plate hole after the needle pierces the fabric, and the knot is tied while the fabric remains pushed down into the needle plate hole, then it will maintain that pushed-down— puckered— shape.
The key is to avoid a scenario where the fabric gets pushed down into the needle plate hole as the stitch is being made. There are a few ways we can avoid this scenario.
(1) Straight-Stitch Needle Plate
The vast majority of sewing machines in 2024 are designed with a maximum stitch width of either 5.5mm, 7mm, or 9mm, meaning the needle plate hole has a corresponding width of either 5.5mm, 7mm, or 9mm. It also means the machine has the ability to sew decorative stitches or monogramming stitches at a maximum width of either 5.5mm, 7mm, or 9mm. And it also means that there is a hole of either 5.5mm, 7mm, or 9mm that your fabric can get sucked down into.

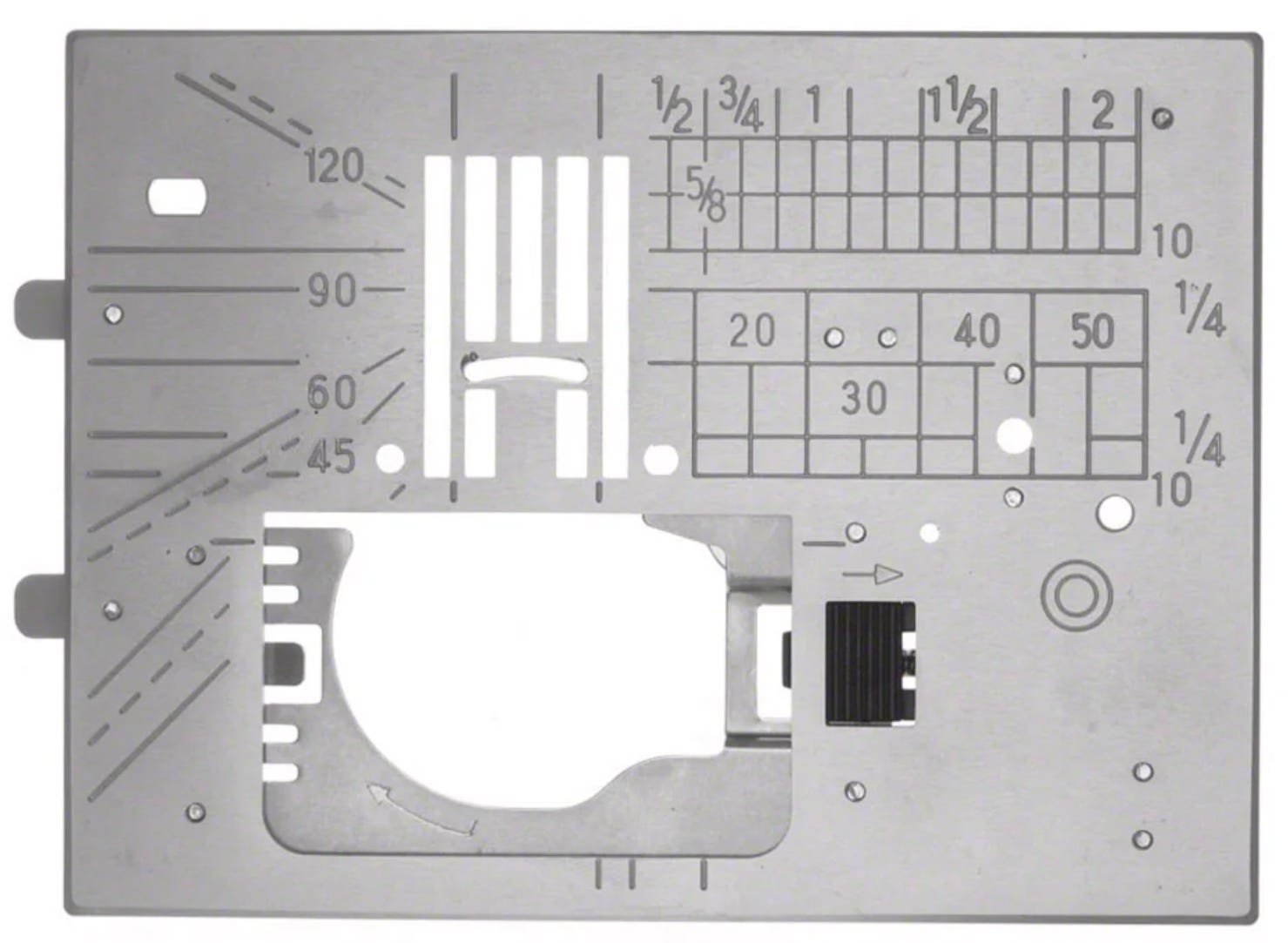

In theory, the wider the needle plate hole, the more susceptible the machine is to puckering fabric. Thankfully sewing machine manufacturers are aware of this, which is why they make straight-stitch needle plates for nearly every machine.
With the small straight-stitch needle plate hole, the fabric we’re sewing is better supported. There is literally less space for fabric to get pushed down into, so puckering is far less likely to happen. Some manufacturers will even put 3 small holes on their straight stitch plate so that sewists can avoid puckering while sewing with the needle in the far left or far right position. If you occasionally experience fabric puckering and you don’t have a straight-stitch needle plate for your machine, I highly recommend it as a solution.
(2) Stabilizer
Sometimes a straight stitch needle plate will not solve the puckering problem. What if we are experiencing fabric puckering on a zig-zag stitch, such as a buttonhole, a decorative stitch, or monogramming?
The answer is stabilizer.
Fabric puckers when it gets pushed into the needle plate hole. It gets pushed into the needle plate hole if it is not sufficiently supported. Stabilizer is essentially fabric support.

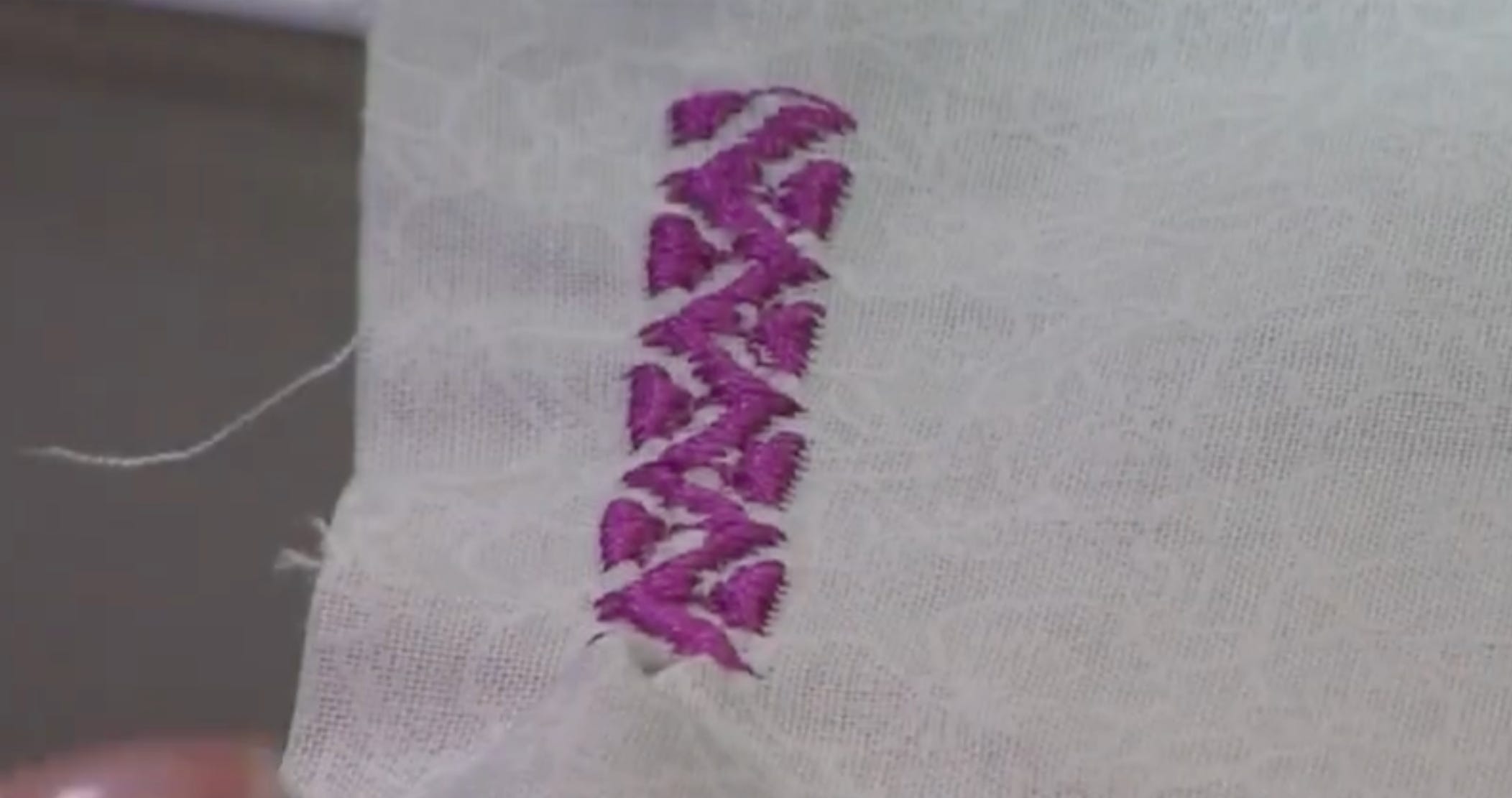

When we do a zig-zag/decorative stitch pattern, the number of stitches per centimeter is much higher than the stitches per centimeter when sewing a straight stitch. Think about it: whereas a straight stitch requires 1 stitch every 2 millimeters (given that our stitch length is 2 mm), some decorative stitches require 5-10 stitches every 2 millimeters. That is a lot of holes being poked into a small area of fabric, weakening the fabric’s stiffness and weakening the overall support— and making it more likely that the fabric will get pushed down into the needle plate hole and pucker.

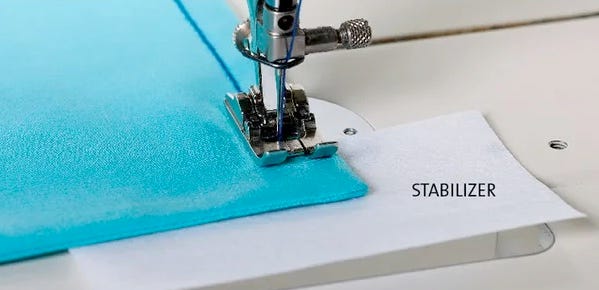

Leather generally doesn’t pucker because it’s stiff and naturally supportive. Denim doesn’t really pucker either for the same reason. If you are sewing thinner fabric and it’s puckering during a zig-zag or decorative stitch, add a sheet of stabilizer underneath the fabric to provide support .
(3) Matching the Needle to the Fabric
Depending on the fabric one is sewing, the wrong needle can cause puckering if it’s not piercing the fabric as easily as it ought to. Remember, the key to avoid a scenario where the fabric gets pushed down into the needle plate hole as the stitch is being made. For example, if we are using a ballpoint needle (with a rounded needlepoint) to sew on a tightly woven cotton, it may not pierce the fabric crisply. Instead of piercing crisply, the needle may push the fabric down into the needle plate hole before poking through the fabric, and this can cause puckering.

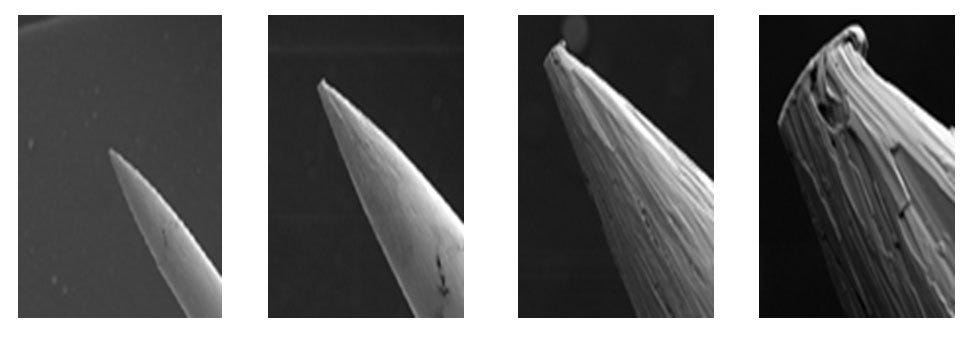

A dull needle can cause puckering for the same reason. A dull needle won’t pierce the fabric crisply and instead will push the fabric down into the needle plate hole before poking through the fabric.
I have already written a handful of articles on needles and the importance matching the needle to the fabric, so I will link those articles below for anybody who is interested in learning more:
Thank you for reading.
Between matching the needle type to your fabric, sewing with a straight-stitch needle plate, and using stabilizer, we should be able to avoid the dreaded fabric puckering.
If you like this article, please share with friends and fellow sewists. Also feel free to leave a comment, or explore the Archive of past articles.
-Cale
